Loranzo espresso machine - the beat goes on
Parts are now ordered and hopefully will arrive in the next two weeks.
We filter and soften the water in the house. The service guy way by today and I spoke with him about additional filtering for the espresso machine. He thought it was a good idea. He also suggested putting a bit of bleach through the machine to remove the taste.
When I collected the machine I also got a 3 stage filter system. It's in rough shape (the bracket is rather rusted) but serviceable I'll clean it up and install it in the water feed line. This will also allow me to introduce descaler into the system. Here's what it looks like disassembled:
 |
| Three stages. 1 2 micron filter and 2 activated carbons are the plan. |
 |
| Filter holders are gross and will need to be thoroughly cleaned. |
The filters proper are trash. I can buy replacements at Home Depot or over the net. I'll probably install a 1 or 2 micron filter and 2 carbon filters. The filter containers are gross inside and will need a through cleaning.
Issues:
- Should I drain the boiler? Shoud I descale? - DEFERRED
- Parts - OPEN
- Karma is ordering
- Steam wand
- Group head O ring
- 2 shot basket
- 2 shot spout
- back flush basket
- 3 way valve
- Pressure gauge - Seems OK.
- Pressurestat - Seems OK
- Install filters
CURRENT PARTS LIST:
- Steam wand - Looks like Espresso Parts has an after market wand at a reasonable price (>$40). Karma will order.
- Citric acid: I'm going to defer this for the moment.
- Amazon offers "Spicy World Citric Acid, 5-Pound"
- Are 1 or 2 tablespoons of citric acid per liter the correct concentration?
- Portafilter - Espresso parts is a source or Dave may be able to help
- Double basket
- Double portafilter spout
- Backflush disk
- Group head gasket - Espresso Parts has part. It is described as RANCILIO GROUP HEAD PORTAFILTER GASKET - 74 X 57 X 8.2MM. There is an aftermarket part as well described as "An economical alternative to the O.E.M. gasket. 73.5 x 57 x 8mm."
- Three-way Lucifer - Parker Solenoid valve 110V 50/60Hz 9W Part number 491514P3 D400P3.
- Filters
- 8" filters ( 1 or 2 micron and 2 activated carbon )
- valves to install filters as needed
CURRENT TODO LIST:
- Buy/acquire needed parts
- Replace three way valve
- Replace group head gasket
- Replace steam wand
- Flush machine to resolve taste
- Install filter system
Monday, April 15, 2013
Loranzato espresso machine - leaks & three way valve

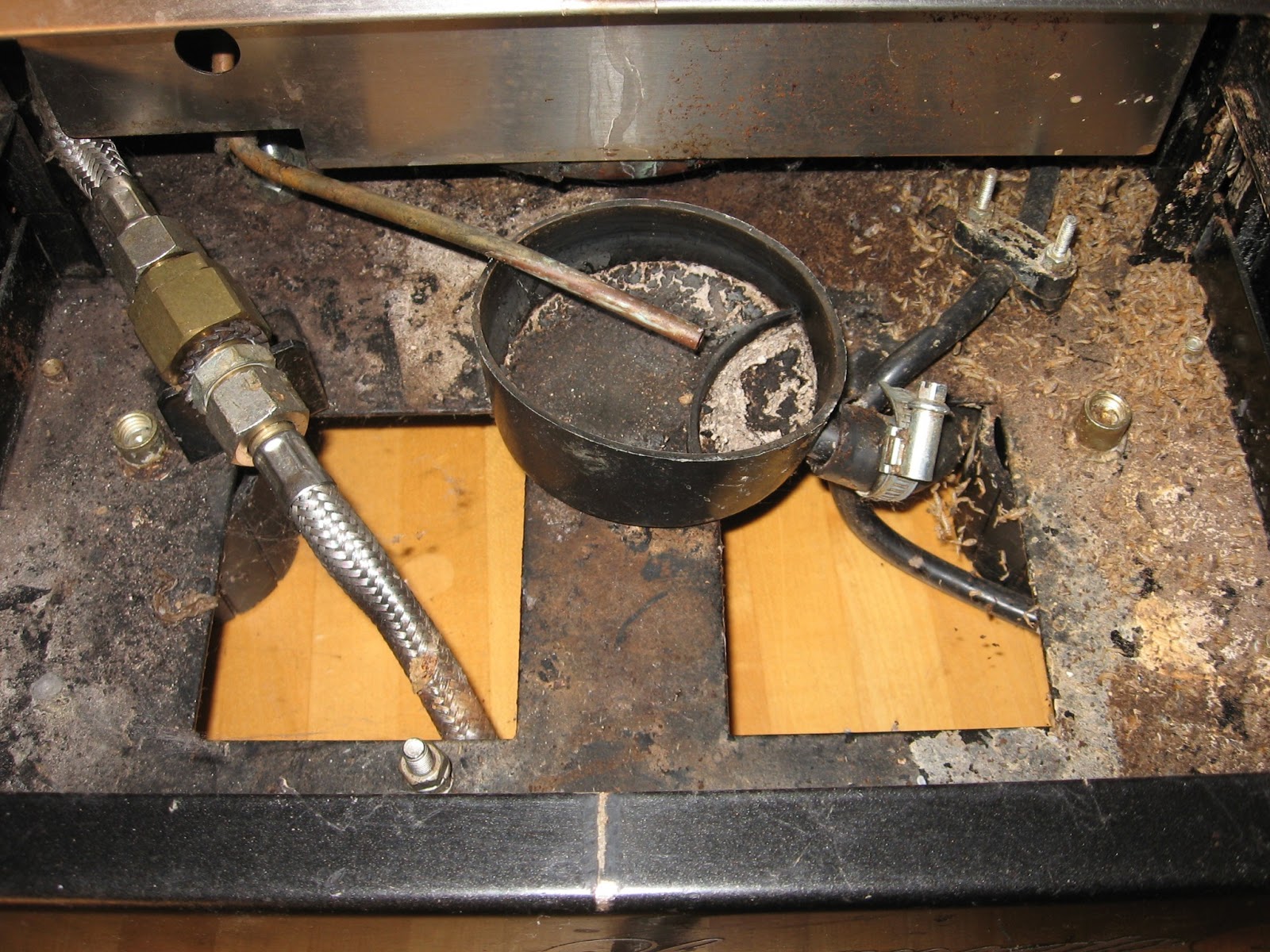

On the leak front I've fabricated a better drain arrangement.
 |
| New drain arrangement with 90 elbow to avoid crimping drain line. |
I took the 3 way valve off and disassembled it. Here's what it looks like connected with a good shot of the color codes.
 |
| Color codes on 3 way valve. |
 |
| Three way valve removed and partially disassembled. |
 |
| Disassembled base and nucleus. |
 |
 |
There's a good description of 3 way valves here. Based on this the valve is a 3 way valve with a flange body 110v coil and ruby valve nucleus.
Karma Dave said he'd order one.
Issues:
- Should I drain the boiler? Shoud I descale? - DEFERRED
- Parts - OPEN
- Karma is ordering
- Steam wand
- Group head O ring
- 2 shot basket
- 2 shot spout
- back flush basket
- Drips from three-way valve - need to replace valve
- Pressure gauge - Seems OK.
- Pressurestat - Seems OK
CURRENT PARTS LIST:
- Steam wand - Looks like Espresso Parts has an after market wand at a reasonable price (>$40). Karma will order.
- Citric acid: I'm going to defer this for the moment.
- Amazon offers "Spicy World Citric Acid, 5-Pound"
- Are 1 or 2 tablespoons of citric acid per liter the correct concentration?
- Portafilter - Espresso parts is a source or Dave may be able to help
- Double basket
- Double portafilter spout
- Backflush disk
- Group head gasket - Espresso Parts has part. It is described as RANCILIO GROUP HEAD PORTAFILTER GASKET - 74 X 57 X 8.2MM. There is an aftermarket part as well described as "An economical alternative to the O.E.M. gasket. 73.5 x 57 x 8mm."
- Three-way Lucifer - Parker Solenoid valve 110V 50/60Hz 9W Part number 491514P3 D400P3.
CURRENT TODO LIST:
- Buy/acquire needed parts
- Replace three way valve
- Flush machine to resolve taste
- Sort out drain hose issue.
Laranzato espresso machine - the adventure continues
On the leak front I've determines that the water came from the drip tray overflowing. One would think this would be a simple problem to address. One would be WRONG! The tray is inappropriately shallow and connects to a hose that is intended to run to a sink/bucket. Because of the machine structure the hose must make a fairly sharp bend. It doesn't want to do this. I'll have to work the issue a bit.
Notwithstanding the open issues I tried to pull a shot. Discovered that the single shot portafilter basket holds about as much coffee as my home machine double shot basket! Interesting. Also discovered an important safety tip ... NEVER try to pull a shot on a machine with an old cracked group head gasket! If you do you'll end up with coffee mess all over. Will now, sensibly, wait for replacement gasket.
After that misadventure the 3 way valve now leaks steadily. I'll do a bit of research with a view to seeing if it can be cleaned or something.
Notwithstanding the open issues I tried to pull a shot. Discovered that the single shot portafilter basket holds about as much coffee as my home machine double shot basket! Interesting. Also discovered an important safety tip ... NEVER try to pull a shot on a machine with an old cracked group head gasket! If you do you'll end up with coffee mess all over. Will now, sensibly, wait for replacement gasket.
After that misadventure the 3 way valve now leaks steadily. I'll do a bit of research with a view to seeing if it can be cleaned or something.
Issues:
- Should I drain the boiler? Shoud I descale? - DEFERRED
- Parts - OPEN
- Karma is ordering
- Steam wand
- Group head O ring
- 2 shot basket
- 2 shot spout
- back flush basket
- Drips from three-way valve - need to replace valve
- Pressure gauge - Seems OK.
- Pressurestat - Seems OK
CURRENT PARTS LIST:
- Steam wand - Looks like Espresso Parts has an after market wand at a reasonable price (>$40). Karma will order.
- Citric acid: I'm going to defer this for the moment.
- Amazon offers "Spicy World Citric Acid, 5-Pound"
- Are 1 or 2 tablespoons of citric acid per liter the correct concentration?
- Portafilter - Espresso parts is a source or Dave may be able to help
- Double basket
- Double portafilter spout
- Backflush disk
- Group head gasket - Espresso Parts has part. It is described as RANCILIO GROUP HEAD PORTAFILTER GASKET - 74 X 57 X 8.2MM. There is an aftermarket part as well described as "An economical alternative to the O.E.M. gasket. 73.5 x 57 x 8mm."
- Three-way Lucifer - Parker Solenoid valve 110V 50/60Hz 9W Part number 491514P3 D400P3.
CURRENT TODO LIST:
- Buy/acquire needed parts
- Replace three way valve
- Flush machine to resolve taste
- Sort out drain hose issue.
- Try to clean 3 way valve.
Sunday, April 14, 2013
Who cares if it's a bit chilly and a bit wet - ERICKSON'S ICE CREAM IS OPEN
A sure sign of spring, Erickson's Ice Cream is open! Never mind lunch! Erickson's is open! Oh, did I mention that Erickson's is open?
First ice cream run of the year.
First ice cream run of the year.

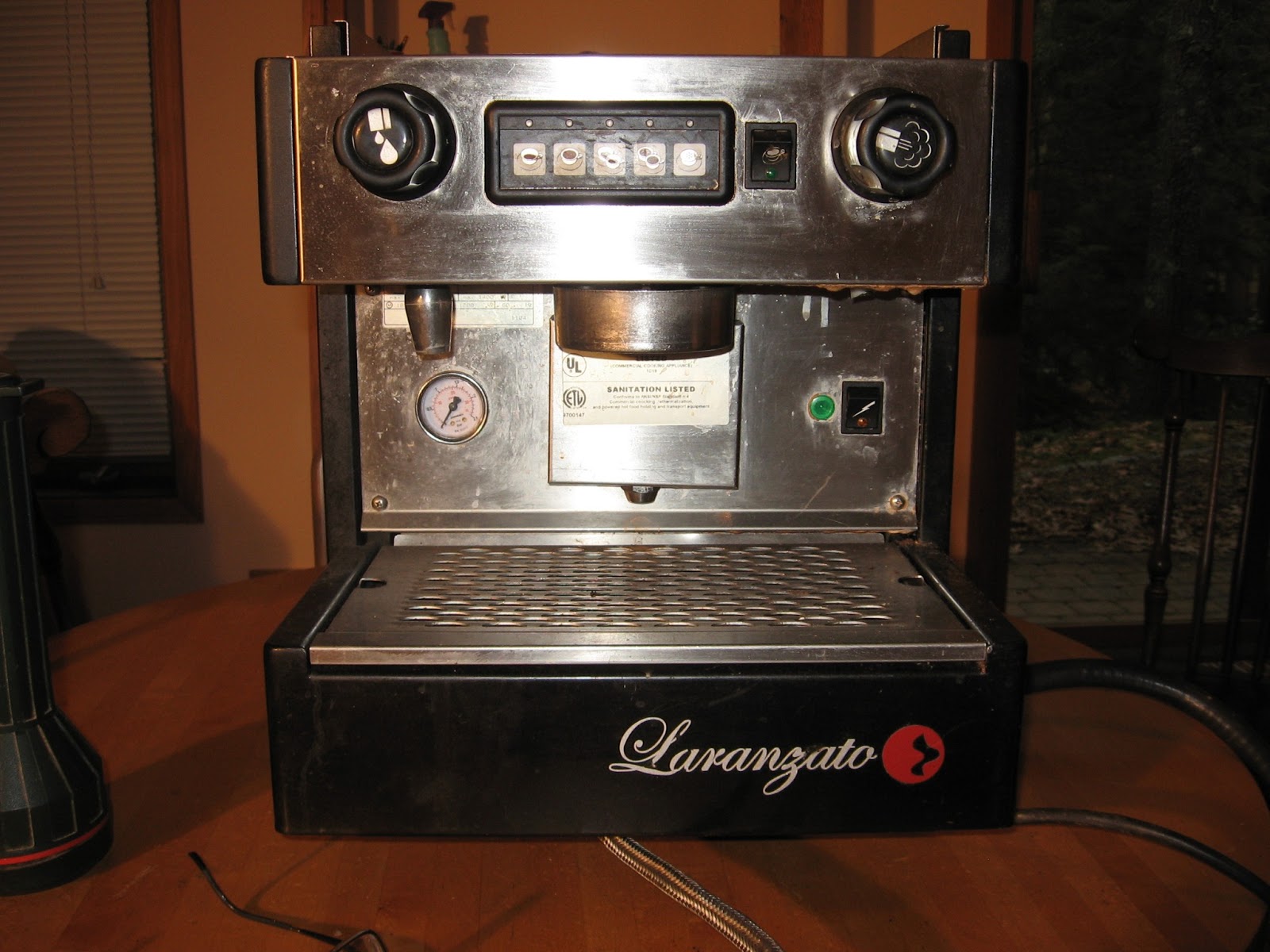

Laranzato espresso machine - plumbed in but still more work
Reassembled machine and with the plumbing parts in hand I've plumbed in the Laranzato espresso machine!
As with all plumbing projects this one had its moments.
The shutoff valve was up and partially behind the sink! I'll never understand what it is with plumbers. Are they operating on the assumption that it will NEVER HAVE TO BE MAINTAINED or what?
Managed with some effort to turn the shutoff valve off. It leaked! I'm rather put out with the plumber since I'd been VERY CLEAR, no ball valve fixtures that dry out then leak the first time you touch them! Frustration mounts.
Shutoff water in house and drain pressure so that I can proceed. Say silent prayer to the plumbing gods that I'll not have to replace the valve. Install John Guest 3 way valve. It's a considerable challenge since it sits on top of the shutoff valve well behind the sink. Somehow manage to get it on and seated.
Reconnect cold water line to top of John Guest valve. This is a serious challenge since it's WAY BEHIND the sink. Ask plumbing gods to condemn plumber to hell long enough for him to perform such operations a few billion times. Somehow succeed!
Turn shutoff valve back on and pray that it won't leak. Much to my surprise it doesn't! Today might be a good day to buy a lottery ticket since the gods of fortune seem to be smiling.

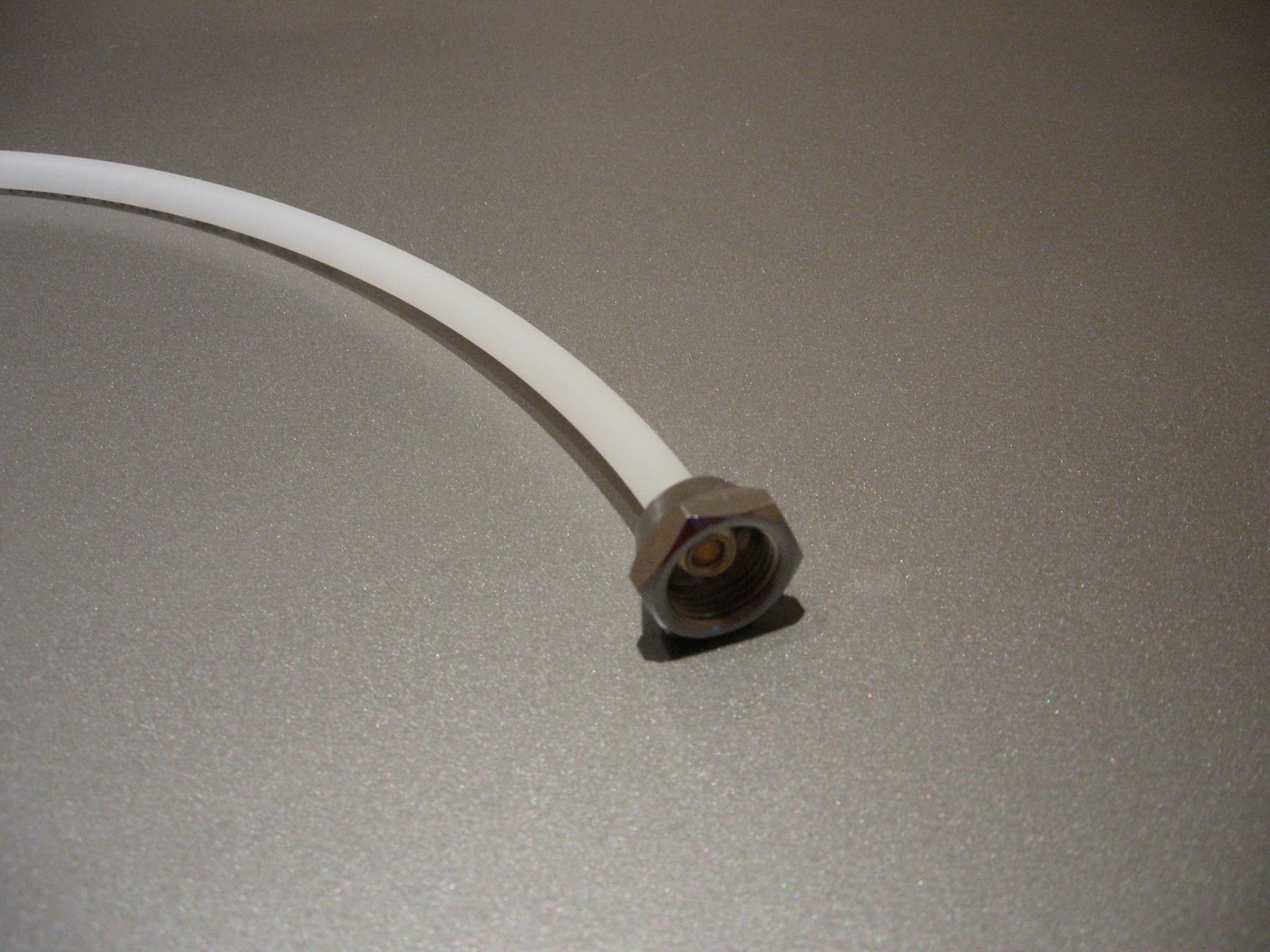

Run plastic cold water line to espresso machine and attach. All seems well!
Install drain line.
Route power cord.
It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!!
Turn machine on and wait for pressure to come up.
Everything seems to work ok!! Joy oh joy.
Run a couple of liters of water through to flush system.
Taste water.
Yetch!! Not good not good at all.
Run more water through.
Oops, something's leaking.
Now searching for leak.
The three way valve is dripping steadily so that may be part of the problem. Interesting article on theory, care and feeding of three way valves here. It appears to be a Three-way Lucifer - Parker Solenoid valve 110V 50/60Hz 9W Part number 491514P3 D400P3. Espresso parts has them for about $80. Ebay for about $40.
Decide not to buy lottery ticket just yet.
Need to investigate possible leak, replace three way valve, and resolve taste.
As with all plumbing projects this one had its moments.
The shutoff valve was up and partially behind the sink! I'll never understand what it is with plumbers. Are they operating on the assumption that it will NEVER HAVE TO BE MAINTAINED or what?
Managed with some effort to turn the shutoff valve off. It leaked! I'm rather put out with the plumber since I'd been VERY CLEAR, no ball valve fixtures that dry out then leak the first time you touch them! Frustration mounts.
Shutoff water in house and drain pressure so that I can proceed. Say silent prayer to the plumbing gods that I'll not have to replace the valve. Install John Guest 3 way valve. It's a considerable challenge since it sits on top of the shutoff valve well behind the sink. Somehow manage to get it on and seated.
Reconnect cold water line to top of John Guest valve. This is a serious challenge since it's WAY BEHIND the sink. Ask plumbing gods to condemn plumber to hell long enough for him to perform such operations a few billion times. Somehow succeed!
Turn shutoff valve back on and pray that it won't leak. Much to my surprise it doesn't! Today might be a good day to buy a lottery ticket since the gods of fortune seem to be smiling.
Run plastic cold water line to espresso machine and attach. All seems well!
Install drain line.
Route power cord.
It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!! It's alive!!
Turn machine on and wait for pressure to come up.
Everything seems to work ok!! Joy oh joy.
Run a couple of liters of water through to flush system.
Taste water.
Yetch!! Not good not good at all.
Run more water through.
Oops, something's leaking.
Now searching for leak.
The three way valve is dripping steadily so that may be part of the problem. Interesting article on theory, care and feeding of three way valves here. It appears to be a Three-way Lucifer - Parker Solenoid valve 110V 50/60Hz 9W Part number 491514P3 D400P3. Espresso parts has them for about $80. Ebay for about $40.
 |
| Three way valve. Image rotated 180 so can read writing. Part number 491514P3 D400P3 |
Decide not to buy lottery ticket just yet.
Need to investigate possible leak, replace three way valve, and resolve taste.
Issues:
- Should I drain the boiler? Shoud I descale? - DEFERRED
- Parts - OPEN
- Karma is ordering
- Steam wand
- Group head O ring
- 2 shot basket
- 2 shot spout
- back flush basket
- Drips from three-way valve - need to replace valve
- Pressure gauge - Seems OK.
- Pressurestat - Seems OK
CURRENT PARTS LIST:
- Steam wand - Looks like Espresso Parts has an after market wand at a reasonable price (>$40). Karma will order.
- Citric acid: I'm going to defer this for the moment.
- Amazon offers "Spicy World Citric Acid, 5-Pound"
- Are 1 or 2 tablespoons of citric acid per liter the correct concentration?
- Portafilter - Espresso parts is a source or Dave may be able to help
- Double basket
- Double portafilter spout
- Backflush disk
- Group head gasket - Espresso Parts has part. It is described as RANCILIO GROUP HEAD PORTAFILTER GASKET - 74 X 57 X 8.2MM. There is an aftermarket part as well described as "An economical alternative to the O.E.M. gasket. 73.5 x 57 x 8mm."
- Three-way Lucifer - Parker Solenoid valve 110V 50/60Hz 9W Part number 491514P3 D400P3.
CURRENT TODO LIST:
- Buy/acquire needed parts
- Replace three way valve
- Flush machine to resolve taste
